Model
|
1224
|
|
Printer
|
|
Model
|
1224
|
|
Max working speed
|
200pcs/min
|
|
Max feeding size
|
1200*2400mm
|
|
Skip feeding size
|
1500*2400mm
|
|
Min feeding size
|
300*650mm
|
|
Max printing size
|
1100*2200mm
|
|
Cardboard thickness
|
2-11mm
|
|
Register
|
+/-0.5mm
|
|
Slotting precise
|
+/-1.5mm
|
|
Die cutting precise
|
+/-1.5mm
|
|
Max slotting depth
|
285mm
|
|
Slotting interval
|
260*70*260*70mm
|
|
Gluer
|
|
Model
|
1224
|
|
Max working speed
|
150m/min
|
|
Max feeding size
|
1200*2400mm
|
|
Min feeding size
|
350*800mm
|
Features

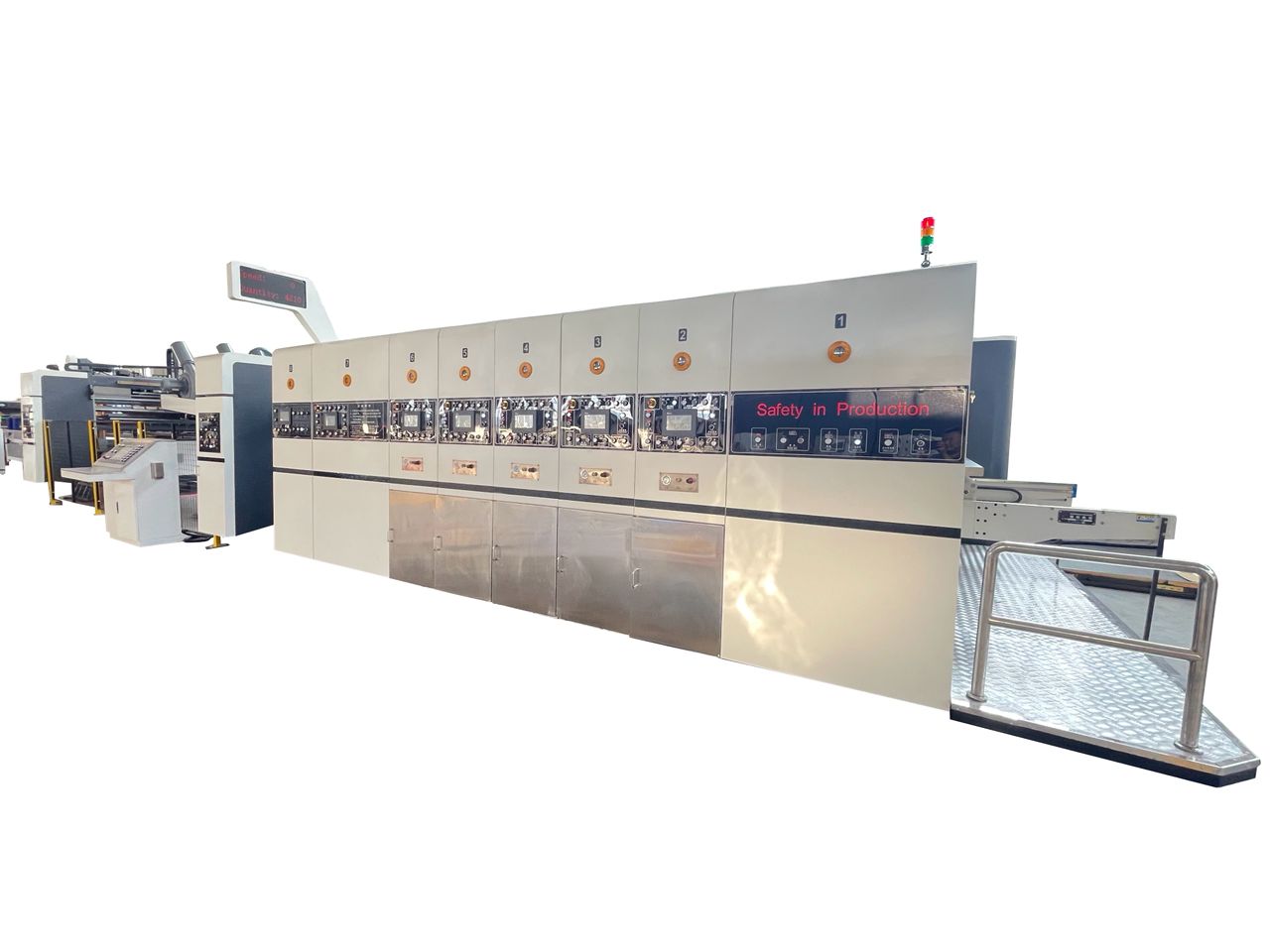

1 The bottom printing printer slotter die cutter
gluer bundler in line consists of lead edge feeder,bottom printing printer,
slotter, die cutter ,folder gluer and bundler.
2 All the units can move,all the rollers gap
adjusted by PLC and touch screen,all the electric parts are siemenz¡£
3 Gears are made of 20CrMnTi£¬HRC 55-62, class 6 precise¡£Main Bearings are SKF,the others
are NSK
4 Vacuum transfer at printing uit
5 Ceramic anilox roller with doctor blade chamber
6 Remote diagnosis by internet.
7 LED
display speed and finshed product etc.
|
